USB4000-FL is Ocean Insights’ preconfigured high sensitivity spectrometer for Fluorescece

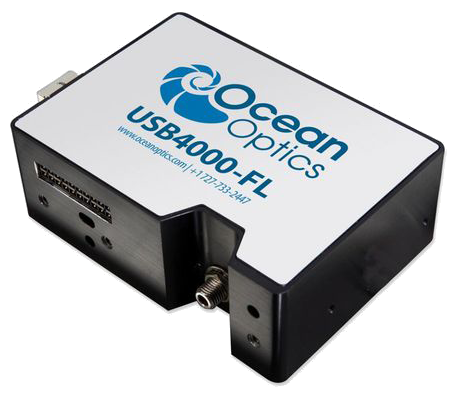

USB4000-FL fluorescent Spectrometer

The USB4000-FL is Ocean Insights’ mini­ature spectrometer platform for fluorescence spectroscopy. It is an afforda ble, high-performance 3648-element linear CCD-array detector with an optical bench that’s small enough to be hand-held. It is preconfigured witgh an L4 Detector Collec­tion Lens to increase light-collection effi­ciency and reduce stray light.

This high-sensitivity USB4000-FL covers the 360-1000 nm wavelength range for pre­cision fluorescence analyses.

The USB4000-FL also features a program­mable microcontroller that allows operating parameters to be programmed in for con­trol of the spectrometer. Also, there are 8 user-programmable digital Inputs/Outputs for interfacing to other equipment.

USB4000-FL Spectrometers Features

  •  High sensitivity for fluorescence signals
  •  350 - 1100 nm spectral range
  •  200 µm slit and detector collection lens as standard
  •  Includes a programmable microcontroller
  •  Plug-and-Play USB Operation
  •  Signal to noise ratio: 300:1
  •  Dynamic range: 2 × 108 (system)
  •  A/D resolution: 16 bit

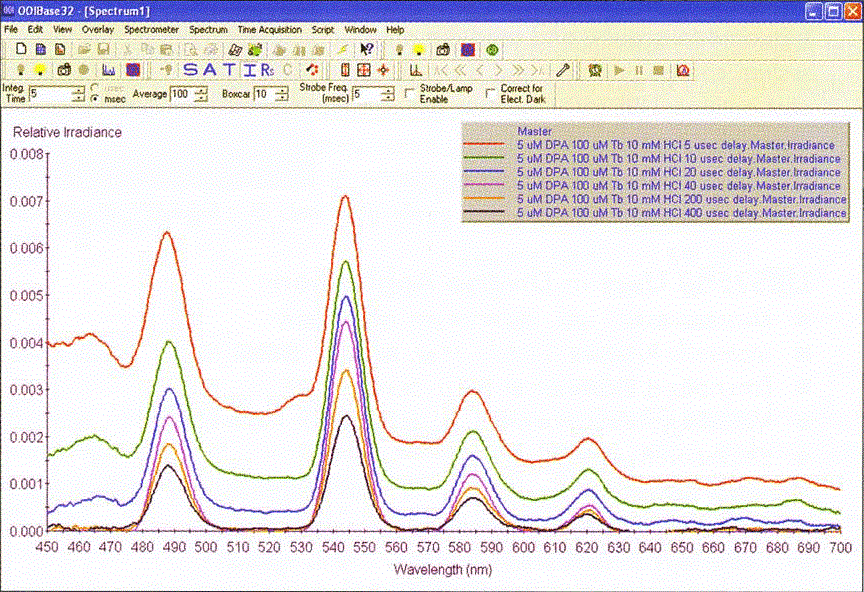

Representative Fluorescent Spectrum (from USB2000-FLG)

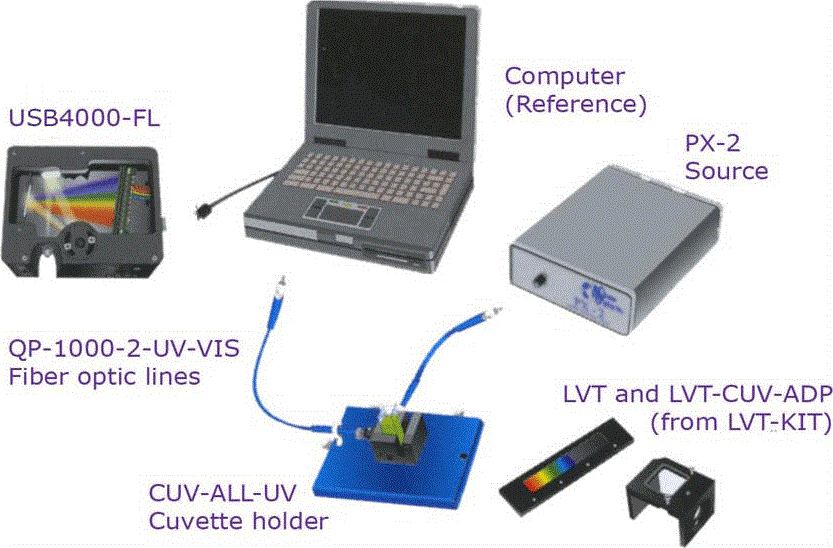

Set-up

The USB4000-FL interfaces to a PC, PLC or other embadded congtrollers via USB 2.0 or RS-232 serial port. Data unique to each spe­trometer is programmed into a memory chip on the USB4000-FL.

The USB4000-FL does not include any excitation source. This allows the user to choose from several modular excita­tion sources which are available. Ocean Insights’ light emitting diodes produce either pulsed or continuous excitation signals. These sources are available in several wavelengths and in a white. They are installed in stand-alone houseings for use with cu­vette holders. Also, sources are available in direct attached versions.

Prices

USB4000-FL USB4000 Preconfigured for Fluorescence 6,614.00
Alternate spectrometers for fluorecence
USB4000-FL-450 The USB4000-FL with an attached 450 nm LED source  $7,850.00
USB4000-FL-395 The USB4000-FL with an attached 395 nm LED source 7,850.00
Accessories of interest
CVD-DIFFUSE PTFE piece for LVFs used in fluorescence cuvette holders  $141.00
CVFL-Q-10 Fluorescence Quartz Cuvette, 1-cm, 3.5 mL 262.00
FIA-SMA-FL-SS Fluorescence Flow Cell, Stainless Steel 801.00
FIA-SMA-FL-ULT Fluorescence Flow Cell, Ultem material 801.00
LED-COMPLETE-KIT Complete LED Kit: 265, 280, 310, 365, 385, 405, 470, 533, 635, 880, Warm White LED - 3689K (White LED) + Controller and Case 7,416.00
LED-GP-KIT General Purpose LED Kit: 280, 365, 470, 3689K + Controller and Case 3,921.00
LED-UV-KIT UV LED Kit: 265, 280, 310, 365 nm + Controller and Case 4,769.00
LED-VIS-KIT VIS LED Kit: 405, 470, 533, 635 nm + Controller and Case 3,496.00
LSM-470A Individual light source module at 470 nm wavelength. Fiber coupled with SMA 905 404.00
LSM-533A Individual light source module at 533 nm wavelength. Fiber coupled with SMA 905 404.00
LSM-635A Individual light source module at 635 nm wavelength. Fiber coupled with SMA 905 404.00
LSM-880A Individual light source module at 880 nm wavelength. Fiber coupled with SMA 905 415.00
LSM-WARM-WHITE Individual light source module Warm White LED - 3000K White LED. Fiber coupled with SMA 905 404.00
PX-2 Pulsed Xenon Lamp, 220 Hz, 220-750 nm, ~5500 hrs at 50 Hz 1,075.00
CVFL-Q-10 Fluorescence Quartz Cuvette, 1-cm, 3.5 mL 262.00
CUV-QPOD-FLKIT Temperature-Controlled Cuvette Holder, Fluorescence 5,114.00
CUV-QPOD-2E-FLKIT USB/Bluetooth Temperature-Controlled Cuvette Holder, Fluorescence 5,175.00
CUV-QPOD-IL-UV Imaging Lens for a qpod for Fluorescence 388.00
74-MSP Mirror screw plugs (use with CUV-ALL-UV) 141.00
LVF-KIT LVF Kit: LVF-HL, LVF-CUV-ADP, FHS-LVF, CVD-DIFFUSE 1,395.00
LVF-UV-KIT LVF Kit: LVF-UV-HL, LVF-CUV-ADP, FHS-LVF, CVD-DIFFUSE 1,395.00
LVF-L Single Low-pass Linear Variable Filter, 300-750 nm 352.00
LVF-CUV-ADP Adapter to hold LVF in filter slot of a cuvette holder 129.00
LVF-H Single High-pass Linear Variable Filter, 300-750 nm 352.00
LVF-HH Two High-pass Linear Variable Filters, 300-750 nm 699.00
LVF-HL Adjustable Bandpass Linear Variable Filter, 300-750 nm 699.00
LVF-LL Two Low-pass Linear Variable Filters, 300-750 nm 699.00
LVF-UV-H Single High-pass UV Linear Variable Filter, 230-500 nm 352.00
LVF-UV-HH Two High-pass UV Linear Variable Filters, 230-500 nm 699.00
LVF-UV-HL Adjustable UV Bandpass Linear Variable Filter, 230-500 nm 699.00
LVF-UV-L Single Low-pass UV Linear Variable Filter, 230-500 nm 352.00
LVF-UV-LL Two Low-pass UV Linear Variable Filters, 230-500 nm 699.00
QP1000-2-UV-VIS Patch cord assembly (fiber optics line) 503.00
Software
OCEANVIEW Cross-platform Spectroscopy Operating Software  $243.00

Prices are in US dollars - Prices subject to change without notice - Products are FOB Ancal, California

Order

To order, you may email an order to info@ancal.com, you may fax Ancal an order to 602-532-7018. or use the form below. In response, you will promptly receive an acknowledgement confirming current prices and noting estimated delivery. Please be aware that in some cases, such as in sales to new customers or in orders for spe­cial items, pre-payment of may be required.

Should you want to order via the internet, go to the order section, in the Contact Us site, and follow the instructions for placing the order.

As an authorized distributor of Ocean Insights products, Ancal can process orders for most items manufacturer by Ocean Insights. Such items may be shipped from Ancal or may be shipped directly from Ocean Insights. All prices are US$ prices in accord with prices published on the price lists herein and on the current Ocean Insights price list.
